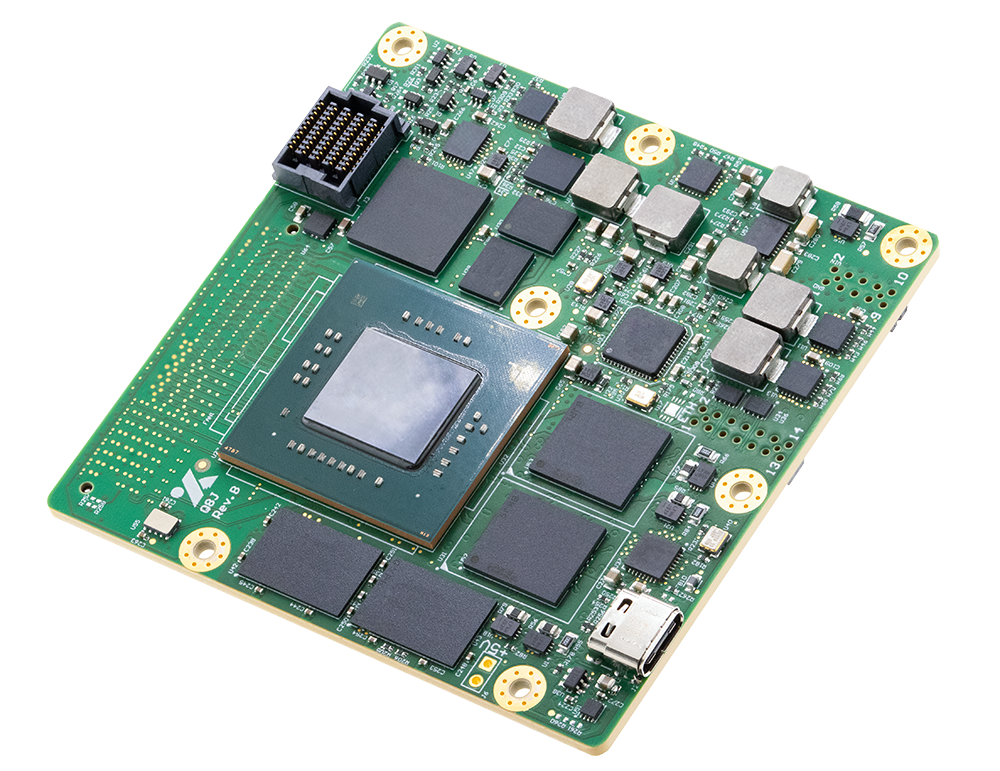

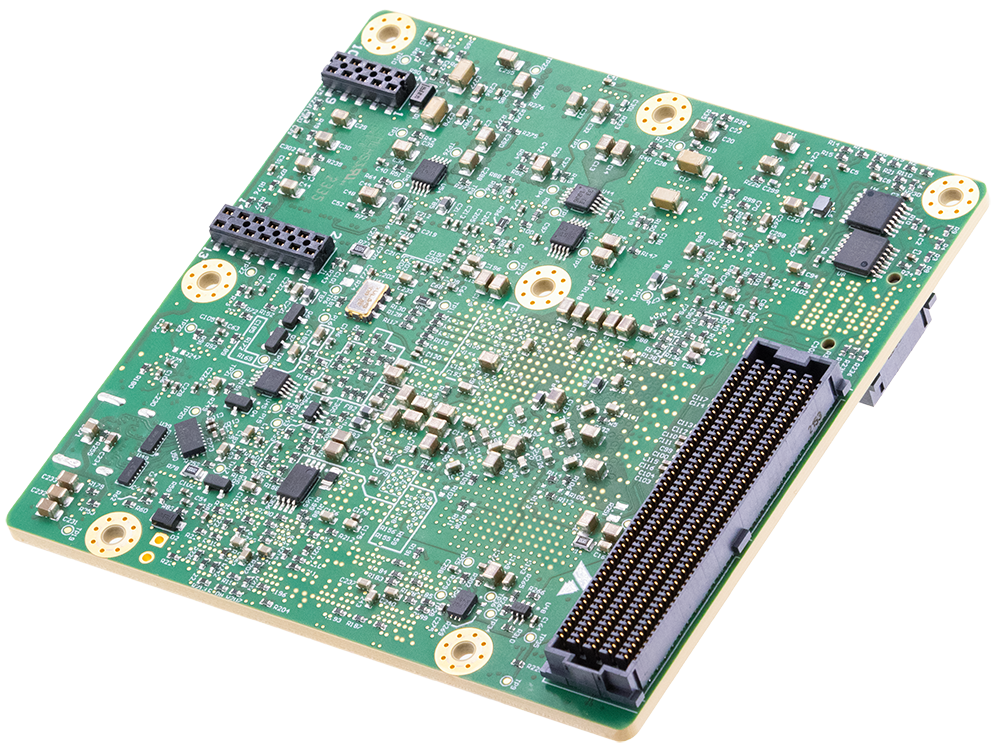

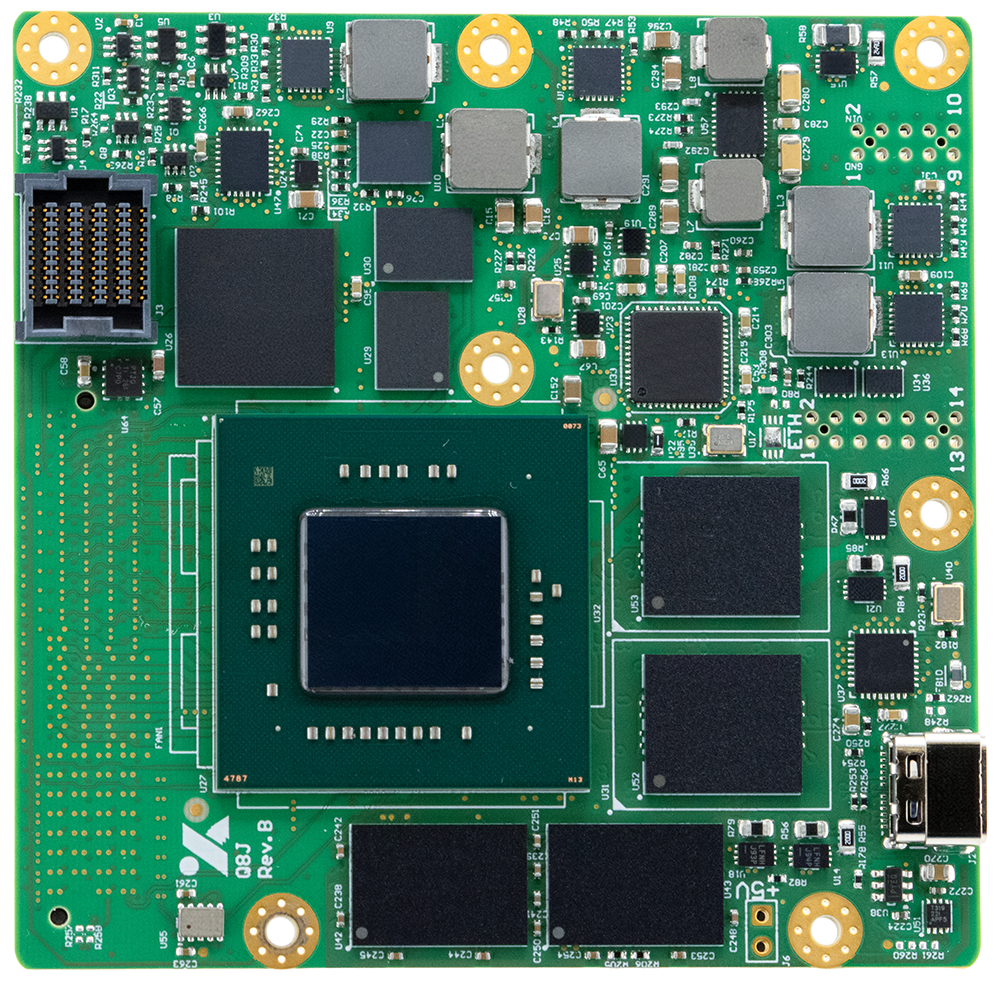

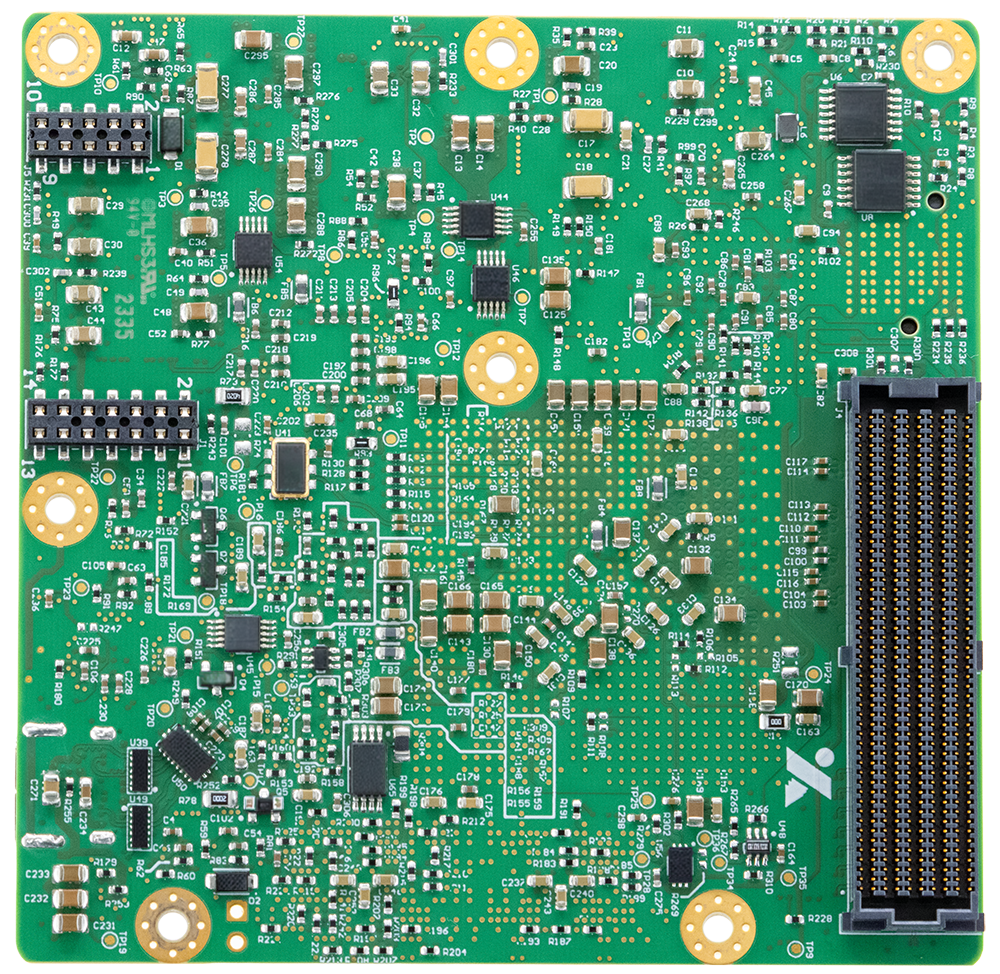

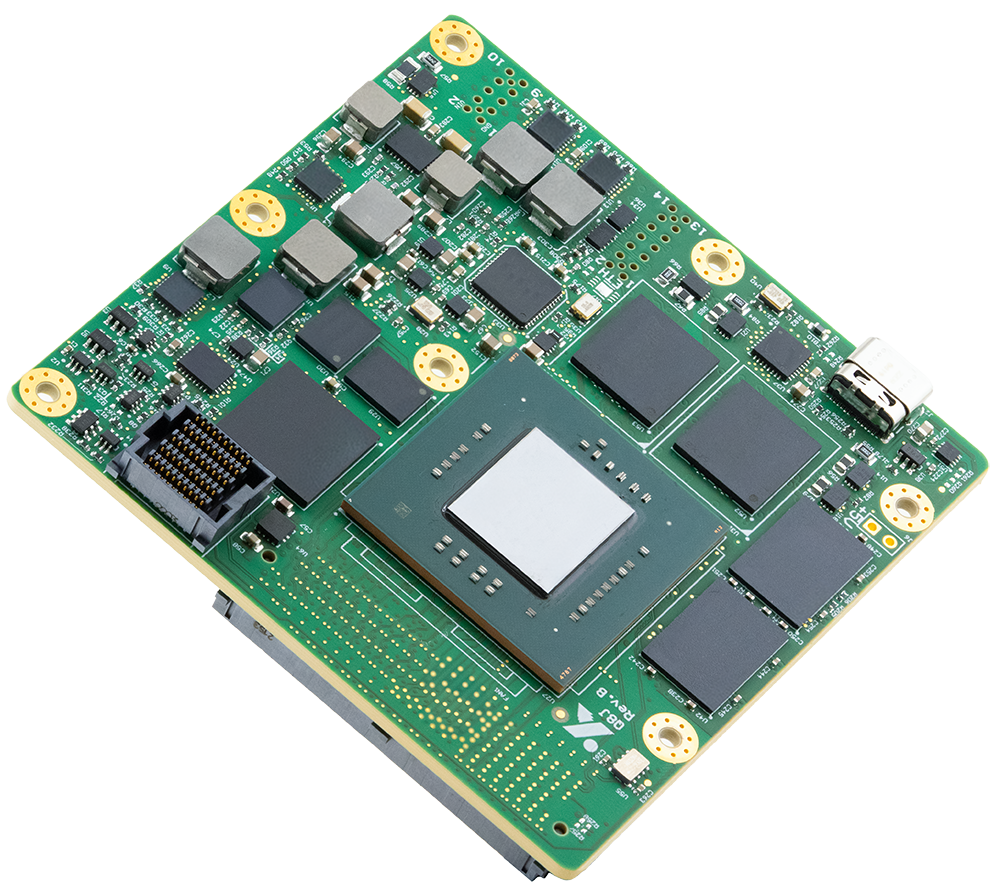

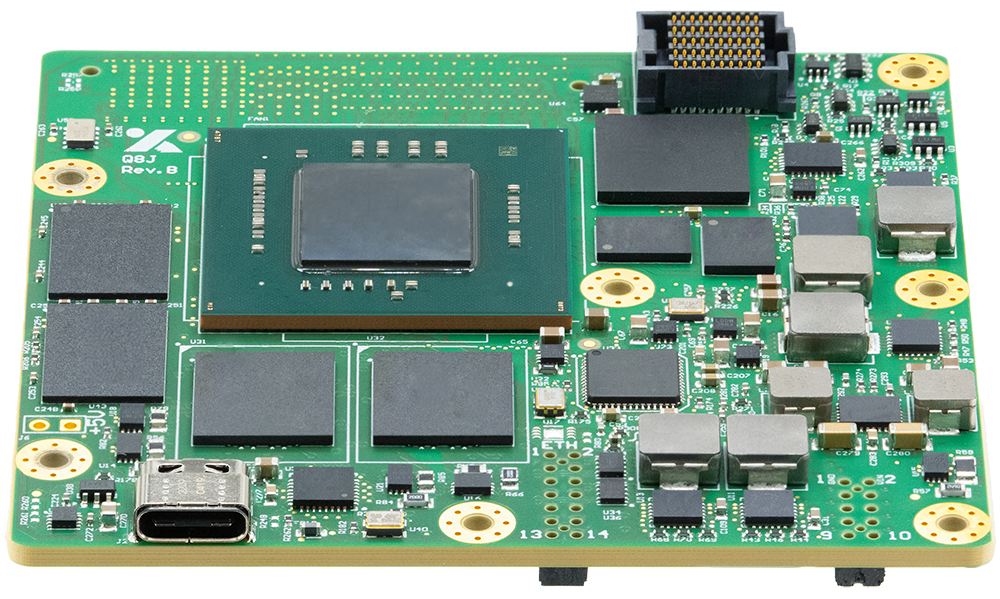

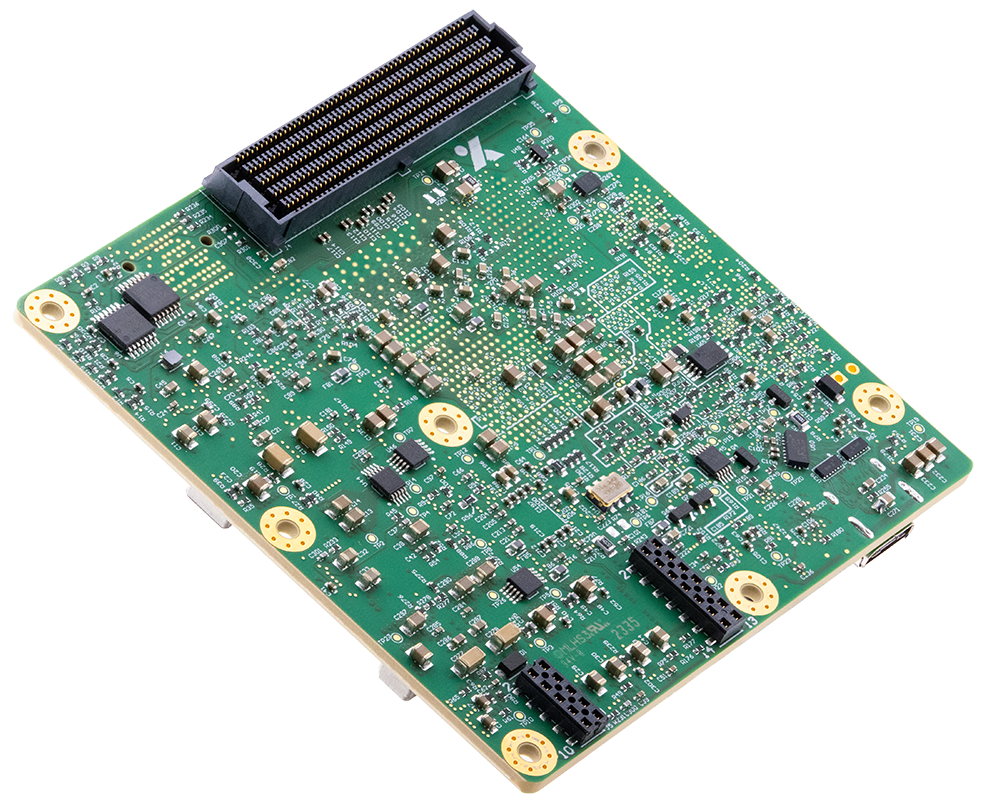

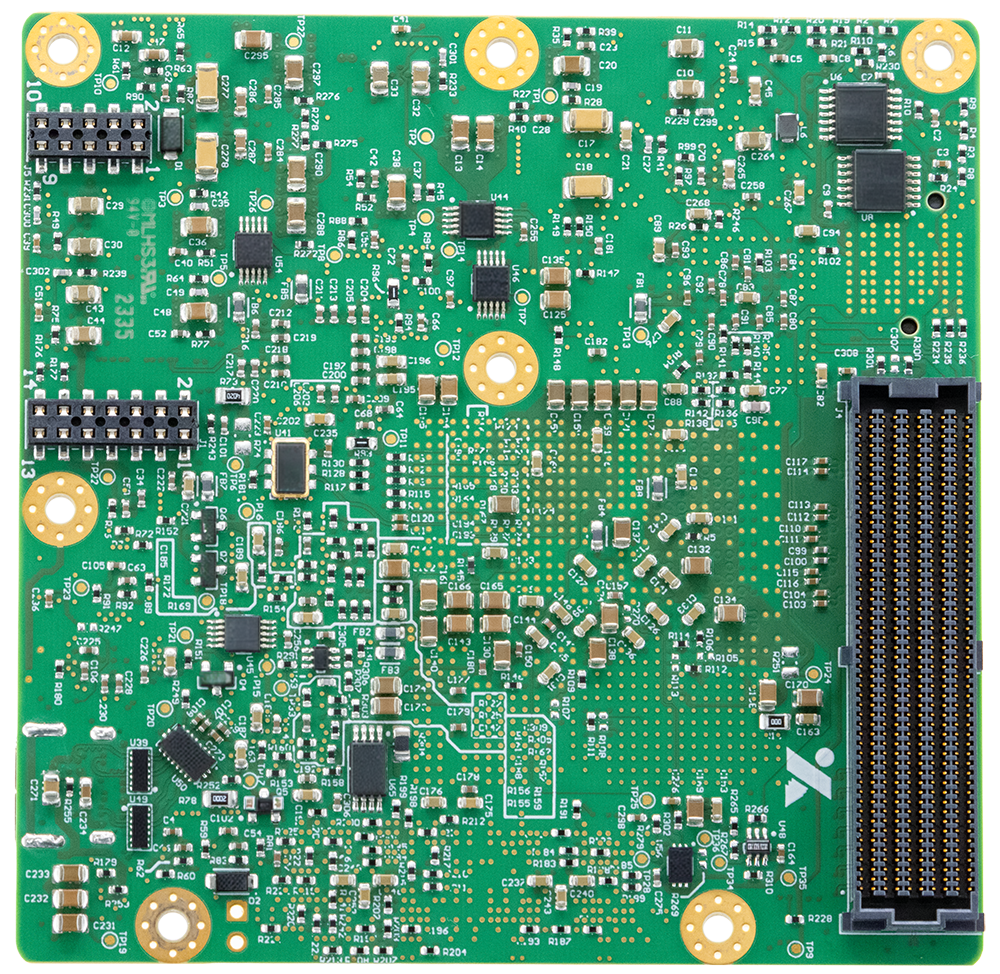

Q8J Low SWaP with GTH Computer-on-Module

There's always room for improvement, isn't there? Which is why we pushed further and created the Q8J. Taking the Q8, fine-tuning it, and adding multi-Gigabit per second transceivers for JESD204B and PCIe interfaces, and enabling access to external DDR3 or DDR4 memory. With its support of JESD204B, the Q8J enables the next generation of Software Defined Radio (SDR).

Spec sheet

FEATURE HIGHLIGHTS

Often used for demanding applications such as radar, satellite comms, high resolution image processing, and scientific research.

Physical Size (mm)	Typical Power Consumption (W)
80 x 80 x 11.2	5
Processor	CPU
Xilinx Zynq UltraScale+ Quad core up to 1.2 GHz	Dual core ARM Real Time Processing Unit at up to 500 MHz
DRAM	Boot Image Storage
4 GB LPDDR4 DRAM with EDAC	2x 256 MB NOR Flash
Mission Data Storage	Control FPGA
2x eMMC, 128 GB each, on independent buses / power control	Microchip ProASIC3 implements XiphosGuard Robustness features (Robust Boot, Watchdog, RDP)
TRL
TRL9 2023

The Q8J processor card offers the following key features:

SPEC SHEET Compare processors

Builds on the Xiphos Q8 processor
Xilinx Zynq UltraScale+ Multi-Processor System-on-Chip (MPSoC) Processing FPGA, including quad-core ARM Cortex-A53 Application Processing Unit, dual-core ARM Cortex-R5 Real-Time Processing Unit, and an ARM Mali-400 GPU supported by massive programmable logic resources

Memory:

4 GB of LPDDR4 RAM (with ECC), 2 x 256 MB QSPI Flash (NOR), 2 x 128 GB eMMC, and support for external PL-accessible DDR3 or DDR4 memory via its mezzanine connector.

Power:

6V to 15 Vdc (6 W typ.)

Interfaces:

Gigabit Ethernet, USB 2.0 & 3.1, serial, multiple high-speed I/O via mezzanine connector, including GPIO, LVDS, GTH and GTR multi-Gbps transceivers for SATA, PCIe, and JESD204B
Linux SDK
Radiation effects mitigation & 30krad TID lifetime

CONFIGURATIONS

We offer several standard configurations which offer the lowest costs and fastest deliveries.

Request a Quote

Q8J-001

Standard configuration.

Q8J-002

Similar to Q8J-001 configuration, but USB2 is routed to the mezzanine connector for customers who want to expose a USB2 interface from their daughter board.

Configuration	Q8J-001	Q8J-002
EM Uncoated Part Numbers	XS003-10002-002-02-A	XS003-10002-006-02-A
FM Uncoated Part Numbers	XS003-10002-005-02-A	XS003-10001-006-02-A
FM Conformal Coated Part Numbers	XS003-10001-003-02-A	XS003-10001-007-02-A
Input voltage range	6-15 V
Startup voltage	4.5 V
Brownout voltage	4.0 V
Hardware over-current limit	1.0 A
Case GND to Digital GND connection	Open
USB2 routing	USB connector Q8J J2	Q8 bottom mezzanine connector J4 (to daughterboard)
PUDC (Pull-Up During Configuration)	Pull-up active
Serial Comms
Serial port configuration (RSXXX pins)	RS422
ttyPS0 routing	PIM serial to USB connector
ttyPS1 routing	Serial port pins in the mezzanine connector

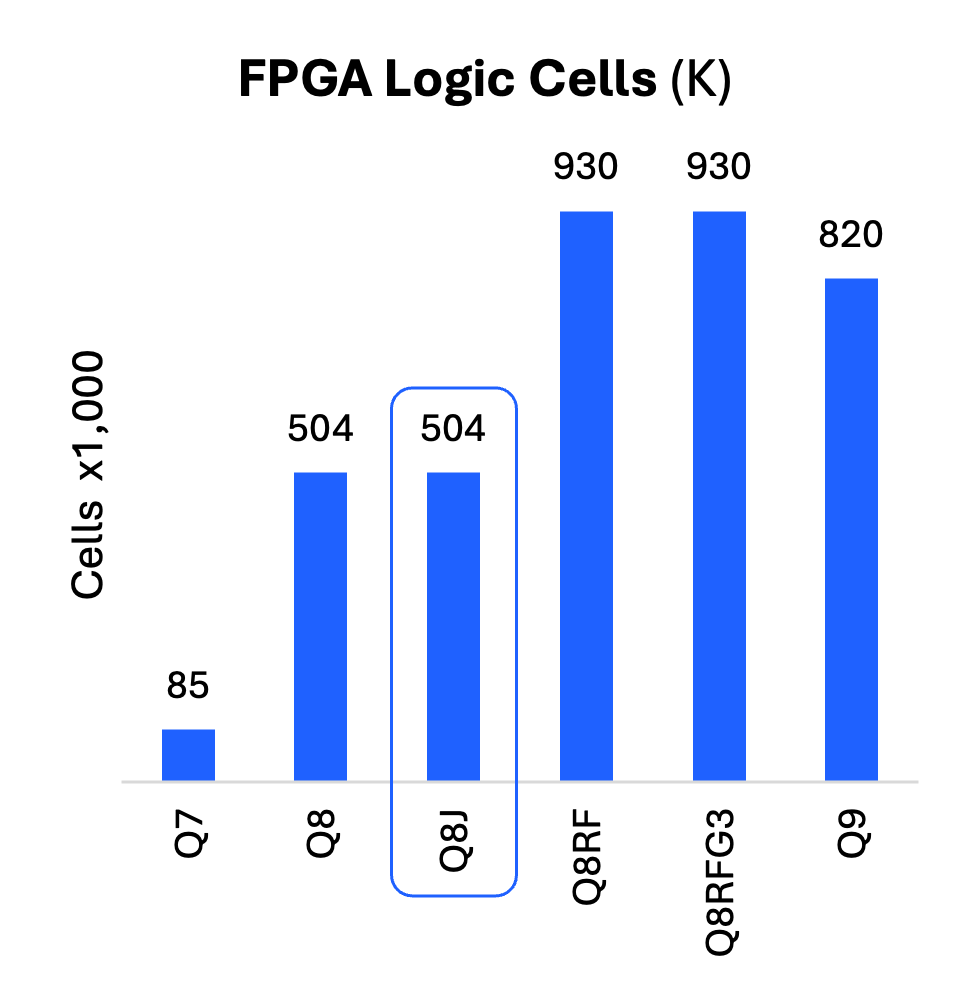

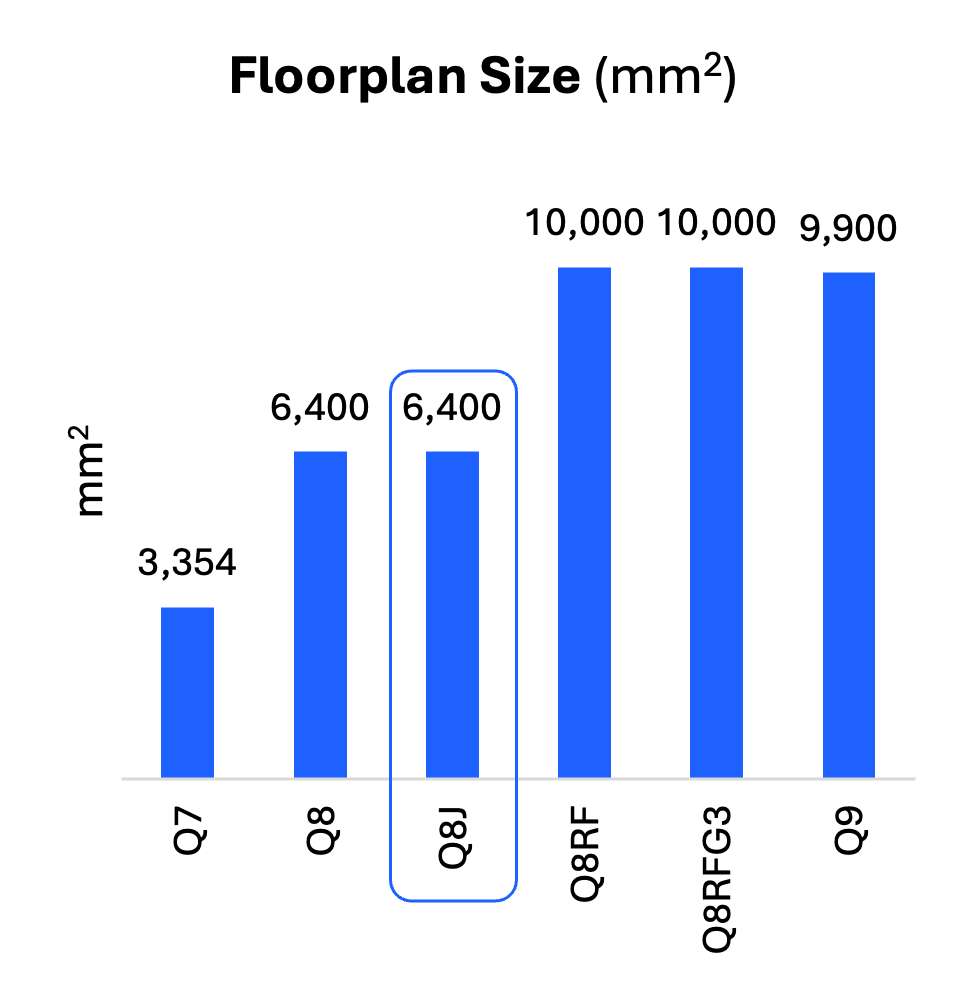

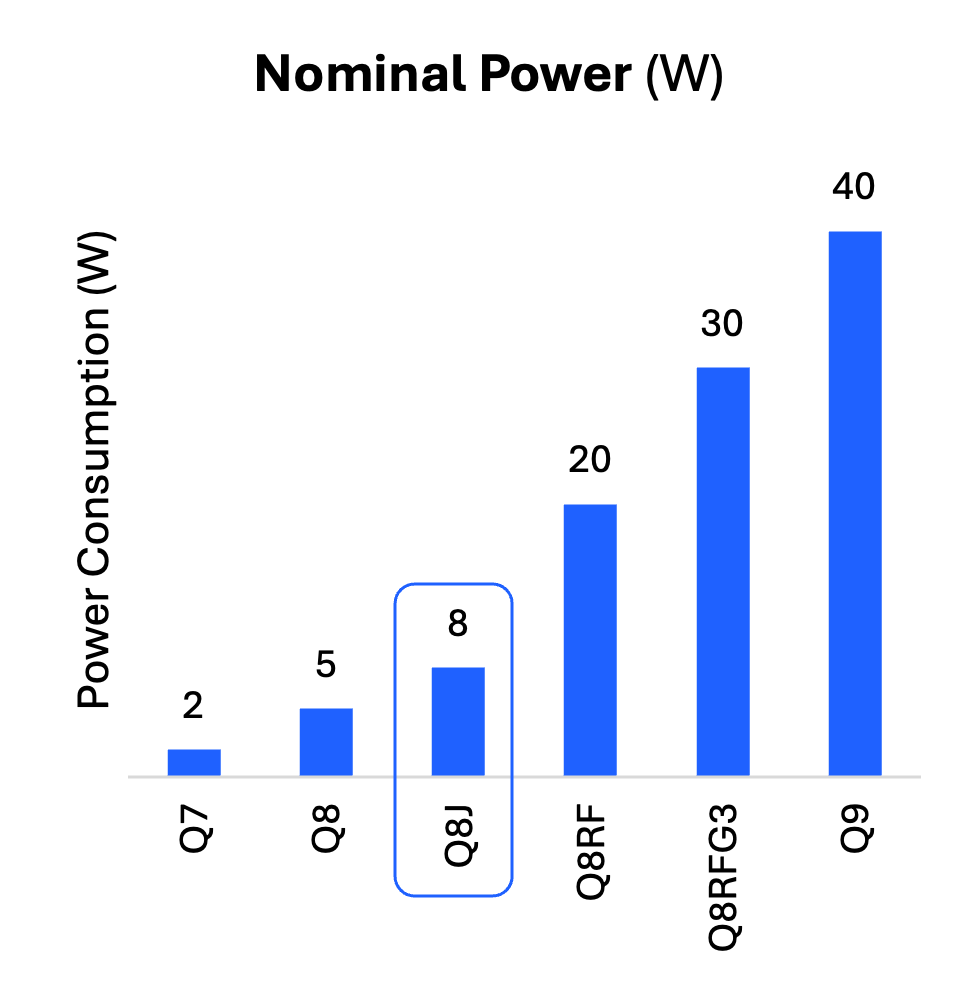

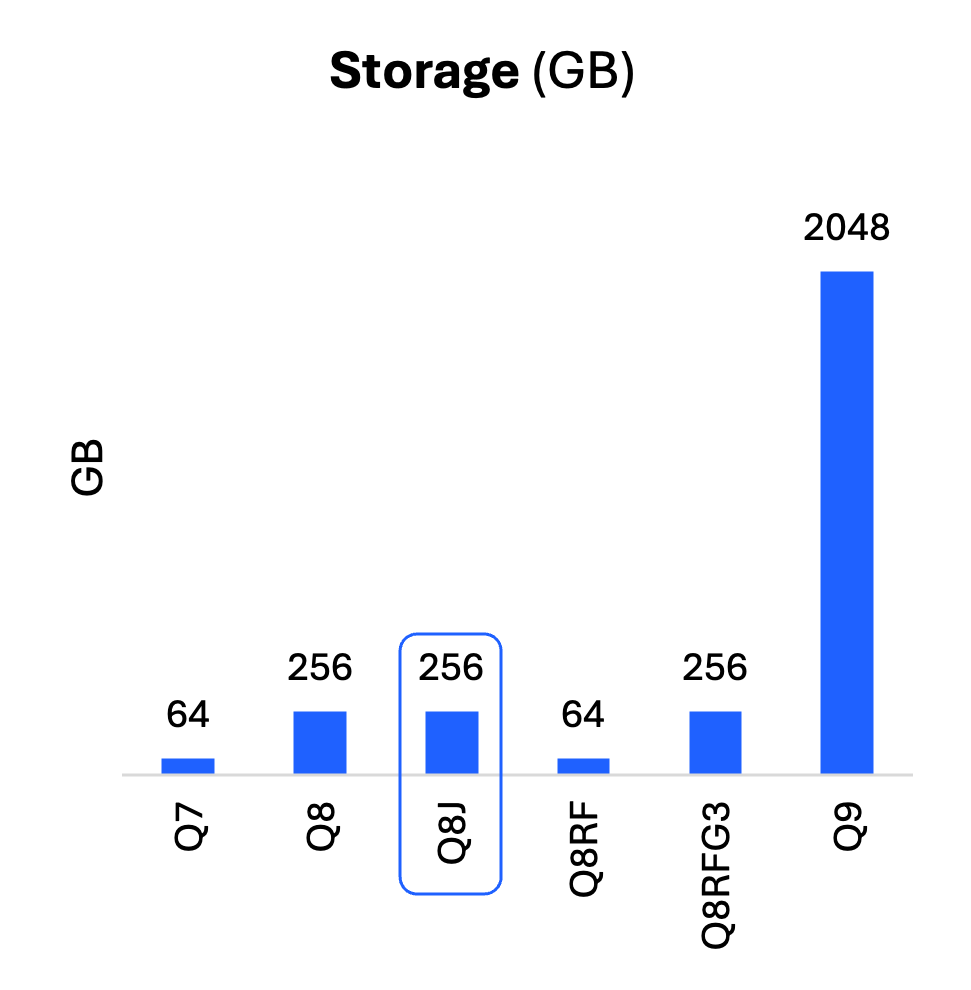

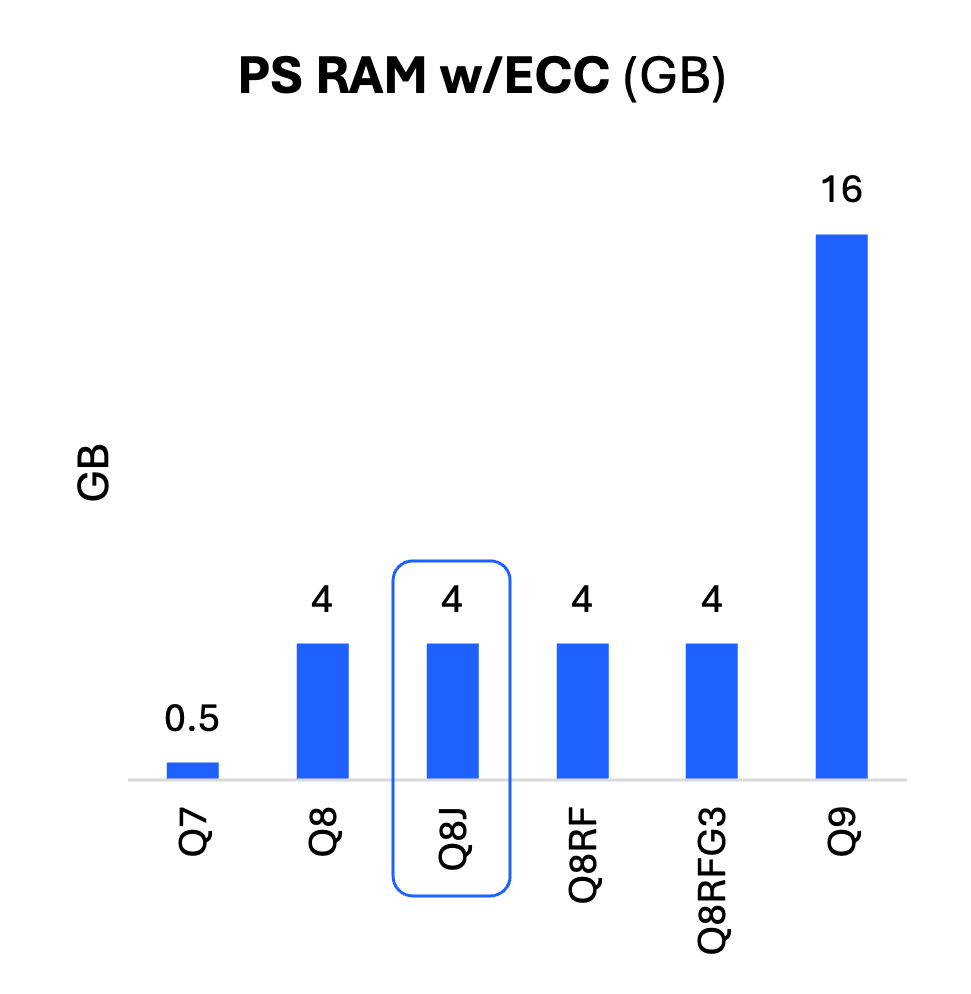

SPACE COMPUTING PRODUCTS - RELATIVE PERFORMANCE

There are many attributes and trade-offs when comparing performance between computing platforms. These graphs give an idea of how the different models compare to each other. These represent a comparison of Q-Card processor boards; daughterboards may add additional resources.

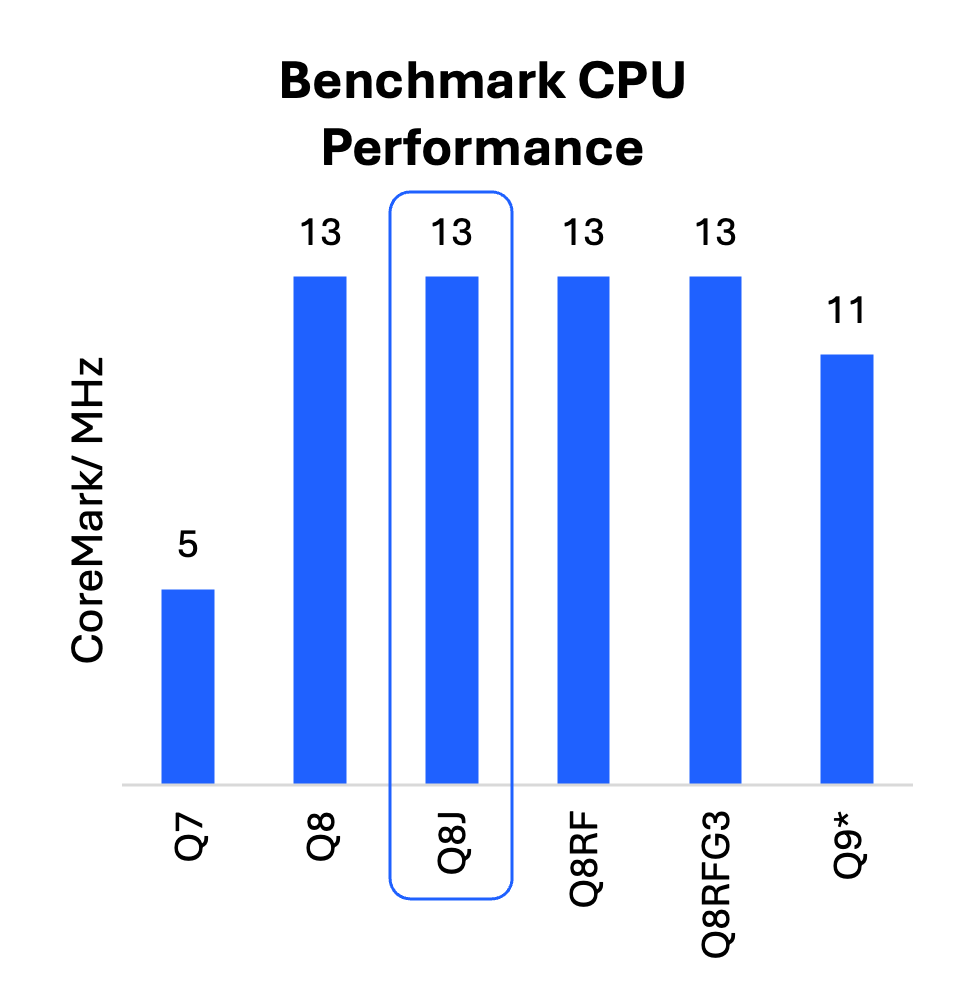

* The Q9 A72 supports out of order execution, larger cache, and faster clock speed etc.

Specific Use

In addition to our standard daughterboards, we offer application-specific development integrating our powerful Q-Card processors with the interfacing options and application-specific electronics you require. Contact our team to learn more about customization.
